MEDIDOR DIGITAL 5 EN 1, MULTITESTER-LUXÓMETRO-TEMPERATURA-HUMEDAD-SONIDO

Iluminación, Iluminancia (Lux

Multímetro digital (VDC, VAC, Amperes, Ω, μF, Hz, continuidad, otros)
Temperatura (ºC)
Humedad relativa (%RH)
Nivel de Sonido (dB)

Más detalles

19 otros productos de la misma categoría:

Más
Comentarios

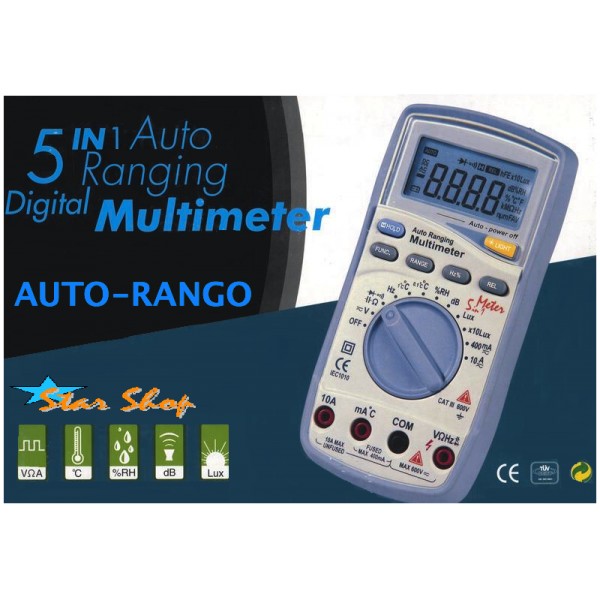

MEDIDOR DIGITAL 5 EN 1, MASTECH MS8209:

Especificaciones generales

Formato: Auto-rango
Modelo MS8209
Pantalla: LCD, 3¾ Dígitos
Máx. Lectura: 399
Indicador de sobrerango: “OL” visible en pantalla
Indicador de polaridad negativa: “-” automático en pantalla
Indicador de batería baja: automático en pantalla
Mediciones 5 en 1:
- Iluminación, Iluminancia (Lux)
- Temperatura (ºC)
- Humedad relativa (%RH)
- Nivel de Sonido (dB)
- Multímetro digital (VDC, VAC, Ω)

Especificaciones Técnicas:

Voltaje DC: 0,4/4/40/400/600V
Voltaje AC: 4/40/400/600V
Corriente DC: 400μ/4000μ/40m/400m/10A
Curriente AC: 400μ/4000μ/40m/400m/10A
Resistencia: 400/4K/40K/400K/4M/40MΩ
Capacitancia: 4n/40n/400n/4μ/40μ/100μF
Frequencia: 10/100/1k/10k/100k/200kHz
Duty Cycle : 0.1% ~ 99.9%
Temperatura : -20ºC - 100ºC
Humedad Relativa: 30%-95%
Iluminancia: 4000Lux/40000Lux
Nivel de Sonido: 35 - 100dB
Continuidad: Si
Chequeo de diodos: Si

General:

Power: Batería 9VDC (6F22)
Dimensiones: 83 x 162 x 47mm (Ancho x Largo x Alto)
Peso: 310 gr (con la batería)
Opciones color: celeste/blaco, verde/negro

Accesorios:

Estuche, funda
Puntas de prueba/medición
Batería 9VDC
Manual de usuario
No incluye certificación ni calibración de equipo

VALOR: $79.990.- IVA incluido

Specifications of the MS8209 5 in 1 meter
As a multimeter
DC Voltage
Range	Resolution	Accuracy
400mV	0.1mV	± (0.7% of reading + 2 digits)
4V	1mV	± (0.7% of reading + 2 digits)
40V	10mV	± (0.7% of reading + 2 digits)
400V	100mV	±(0.7% of reading + 2 digits)
600V	1V	± (0.7% of reading + 2 digits)
Input impedance: 10 M Ohm
Over load protection: 400mV Range 250V DC or rms AC, 4V-6 00V ranges: 600V DC or rms AV, Max input voltage : 600V DC or rms AC
AC Voltage
Range	Resolution	Accuracy
4V	1mV	±
40V	10mV	±(0.8% of reading + 3digits)
400V	100mV	± (0.8% of reading + 3 digits)
600V	1V	± (0.8% of reading + 3 digits)
Input impedance: 10 MOhm
Over load protection: 400mV Range 250V DC or rms AC, 4V-6 00V ranges: 600V DC or rms AV, Max input voltage : 600V DC or rms AC
Frequency range: 40 to 1000Hz,
Response: Average, calibrated in rms of sine wave.

DC Current
Range	Resolution	Accuracy
40mA	10uA	± (1.2% of reading + 3 digits)
400mA	100uA	± (1.2% of reading + 3 digits)
10A	10mA	± (3.0% of reading + 10 digits)
mA ranges: F500mA/250V fuse (quick acting),10A range: unfused. Max. Input current:mA jack:400mA,10A jack :10A; Voltage Drop: ma ranges :5mV/1mA, 10A range: 10mV/1A

AC Current
Range	Resolution	Accuracy
40mA	10uA	± (1.5% of reading + 5 digits)
400mA	100uA	± (1.5% of reading + 5 digits)
10A	10mA	± (3.0% of reading + 10 digits)
mA ranges: F500mA/250V fuse (quick acting),10A range: unfused. Max. Input current:mA jack:400mA,10A jack :10A; Voltage Drop: ma ranges :5mV/1mA, 10A range: 10mV/1A
Response: Average, calibrated in rms of sine wave.

Resistance
Range	Resolution	Accuracy
400 >Ω	0.1>Ω	± (1.2% of reading + 2 digits)
>4KΩ	1>Ω
40K>Ω	10>Ω
400K>Ω	100>Ω
4M>Ω	1K>Ω
40M>Ω	10>Ω	±(1.2% of reading + 2 digits)
Open Circuit Voltage:0.25V, Overload Protection: 250V or rms AC
Capacitance
Range	Resolution	Accuracy
4nF	1pF	± (3.0% of reading + 3 digits)
40nF	10pF
400nF	0.1nF
4uF	1nF
40uF	10nF
200uF	100nF
Overload Protection: 250V DC or rms AC

Frequency
Range	Resolution	Accuracy
9.999 Hz	0.001Hz	± (2.0% of reading + 5 digits)
99.99Hz	0.01 Hz	± (1.5% of reading + 5 digits)
999.9 Hz	0.1Hz
9.999 KHz	1 Hz
99.99 KHz	10 Hz	± (2.0% of reading + 5 digits)
199.9 KHz	100 Hz	± (2.0% of reading + 5 digits)
>200 KHz	.	Reference only
By Hz Range: Range: 0 - 200 KHz Input Voltage: 0.5V - 10V rms AC By V Range: Range: 0 - 40 KHz Input Voltage range: 0.5V - 600V rms AC, Input impedance: 10M>Ω >By mA Range: >Range: 0 -40 KHz, Input current range: 100mA- 400mA rms AC
Duty Cycle
Range	Resolution	Accuracy
0.1 - 99.9 %	0.1%	± 3.0%
Note: When measuring frequency, the range by Duty of Hz range is larger than by Duty of voltage ot current range. More to see on the manual book.
Diode
Range	Resolution	Accuracy
Diode drop	1mV	Display: read appromix forward voltage of diode
Continuity
Built in buzzer will sound if the resistance is lower than 40 Ohms.
As a Thermometer
Range	Resolution	Accuracy
0.1>°C	>0.1°C	-20>° to 0 °	± (5.0% of reading + 8 digits)
		0>°C to 20 °C	±(3.0% of reading + 8 digits)
		20 >°C to 400°C	± (2.0% of reading + 5 digits)
>0.1°C	1 >°C	-20>°C to 0°C	±(5.0% of reading + 5 digits)
		0>°C to 400°C	±(1.0% of reading + 3 digits)
		400>°C to 1000°C	±(2.0% of reading + 3 digits)

As a Humidity Meter
Range	Resolution		Accuracy
30 - 90 %	0.1%		± 5.0% RH
Response time: 45% - 90 %RH < 10 Minutes, 90% - 45% < 15 Minutes
As a Sound Level Meter
Range	Resolution	Accuracy
30dB - 100dB	0.1dB	± 3.5% dB at 94 dB, 1K Hz sine wave.


Range		Resolution	Accuracy
Lux ( 4000)		1 Lux	± (5.0% of reading + 10 digits) at color temp. 2850K, calibrated to standard incandescent lamp at color temperature 2856 K
X 10 Lux ( 40000)		10 Lux
